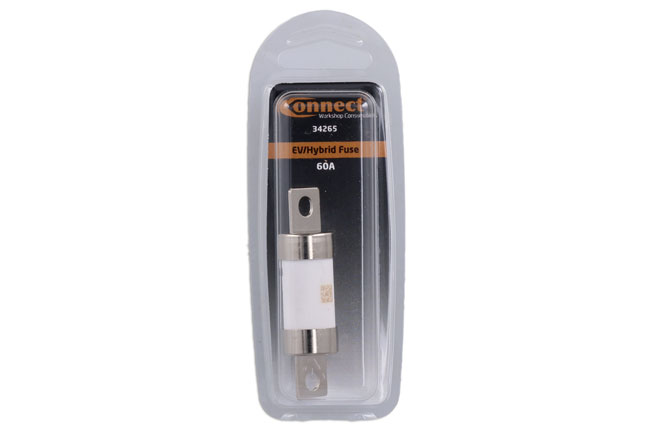

34265 EV/Hybrid Fuse 60A - 1pc

A single 60 Amp high voltage BEV, HEV & PHEV bolt in style fuse, rated to 500V DC. Fuses used in high voltage circuits must be securely mounted to prevent points of high resistance that in turn generate unwanted hot spots. This is why fuses for high voltage automotive applications (500V) are bolt in style. It is important that the correct torque is applied to the fixings bolt. Please ensure the fuse selected meets the requirement of the application and OEM torque setting are applied.

60 Amp bolted tag fuse; 73mm L x 6.5mm W x 20mm⌀.
Breaking Capacity: 20kA.
High voltage HEV bolt in style fuse.
Performance conforms to JASOD622; environmental conformance to ISO8820 JASO D622 & GB/T31465. CE & RoHS compliant.

TSP: £24.85 ex VAT £29.82 inc VAT

Eine 60-Ampere-Hochspannungssicherung für bis zu 500 V Gleichspannung für BEV, HEV und PHEV. Sicherungen, die in Hochspannungsstromkreisen verwendet werden, müssen sicher montiert werden, damit keine Punkte mit hohem Widerstand und unerwünschter Hitzeentwicklung entstehen. Aus diesem Grund müssen Sicherungen für Hochspannungsanwendungen in Kraftfahrzeugen (500 V) verschraubt sein. Die Befestigungsschraube muss unbedingt mit dem richtigen Drehmoment angezogen werden. Sicherstellen, dass die gewählte Sicherung den Anforderungen entspricht und die OEM-Drehmomenteinstellungen verwendet werden.

Verschraubte 60-Ampere-Sicherung; 73 mm L x 65 mm B x 20 mm H.
Schaltvermögen: 20 kA.
Verschraubte Hochspannungs-HEV-Sicherung.
Die Leistung entspricht JASOD622; die Umweltkonformität entspricht ISO8820 JASO D622 und GB/T31465. Erfüllt CE- und RoHS-Bestimmungen.

TSP: £24.85 ex VAT £29.82 inc VAT

Fusible haute tension de 60 ampères pour BEV, HEV et PHEV, de type à boulon, tension nominale 500 V CC. Les fusibles utilisés dans les circuits à haute tension doivent être solidement fixés afin d'éviter les points de haute résistance qui génèrent à leur tour des points chauds indésirables. C'est pourquoi les fusibles pour les applications automobiles à haute tension (500 V) sont de type à boulon. Il est important d'appliquer le couple de serrage correct au boulon de fixation. Veuillez vous assurer que le fusible sélectionné répond aux exigences de l'application et que le réglage du couple OEM est appliqué.

Fusible à cosse boulonnée de 60 ampères ; 73 mm (L) x 65 mm (l) x 20 mm (H).
Capacité de rupture : 20 kA.
Fusible haute tension HEV, de type à boulon.
Performances conformes à JASO D622 ; conformité environnementale ISO 8820 JASO D622 et GB/T31465. Conformité CE et RoHS.

TSP: £24.85 ex VAT £29.82 inc VAT

Enkele hoogspanningszekering van 60 A voor BEV, HEV en PHEV, geschikt voor 500 V DC. Zekeringen die worden gebruikt in hoogspanningscircuits moeten stevig worden gemonteerd om te voorkomen dat er punten met hoge weerstand ontstaan die op hun beurt ongewenste hotspots genereren. Daarom zijn zekeringen voor hoogspanningstoepassingen in de autosector (500V) vaste bouten. Het is belangrijk om het juiste aanhaalmoment te gebruiken voor de bevestigingsbout. Zorg ervoor dat de geselecteerde zekering voldoet aan de vereisten van de toepassing en dat de OEM-koppelinstellingen worden toegepast.

Geschroefde zekering 60 A; 73 mm L x 6,5 mm B x 20 mm⌀.
Breekvermogen: 20 kA.
HEV-hoogspanningszekering met vaste bevestiging.
Prestaties zijn conform JASOD622; milieu conform ISO8820 JASO D622 & GB/T31465. CE- en RoHS-conform.

TSP: £24.85 ex VAT £29.82 inc VAT

Buy Online

Product Range Downloads Press Release

Useful Downloads

View Brochure

Press Release

Connect Workshop Consumables expands range with high-voltage EV/Hybrid fuses

Connect Workshop Consumables has announced the launch of a comprehensive new range of high-voltage fuses specifically designed for electric vehicles (BEVs), hybrids (HEVs), and plug-in hybrids (PHEVs). This cutting-edge lineup includes 26 single, high-voltage bolt-in fuses, rated up to 500V DC, and covers a range of amperages from 15A (part number 34259) to 1000A (part number 34284).

Engineered to meet the demands of modern EV and hybrid vehicles, these fuses conform to JASO D622 and GB/T31465 standards, as well as CE and RoHS compliance, ensuring they meet rigorous safety and quality requirements.

The new range has been developed with technicians and workshops in mind, ensuring it not only meets industry standards but also provides the durability and dependability professionals demand. The wide amperage selection, 26 fuses rated from 15A to 1000A, caters for a wide range of high-voltage applications. These are bolt-in design fuses (secure mounting eliminates the risk of high resistance and hot spots, critical in high-voltage systems) so always ensure proper installation and ensure that the correct torque is applied to the fixings bolts.

No need to contact the main dealer! Part of the extensive consumables range from Connect Workshop Consumables and available now from your local stockist or online supplier.

As part of The Tool Connection group, Connect Workshop Consumables benefits from a wealth of technical expertise and resources, offering a truly comprehensive one-stop solution for workshop professionals across all disciplines.
