Heavy duty connectors which protect against the weather, dirt and high temperatures.
Connectors have a locking mechanism to prevent the wires and terminals vibrating free. Once cable has been crimped onto the terminal, push the terminal through the back of the connector until you hear a 'click'. Turn the connector around and insert the wedge lock plate until you hear the 'click' again which will give a secondary securing lock for the terminals.
The pin terminals are inserted into the connector receptacles and the socket pin terminals are used on the connector plugs.
For a professional crimp please use our Laser Part No 7533.
Industry standard size 16.

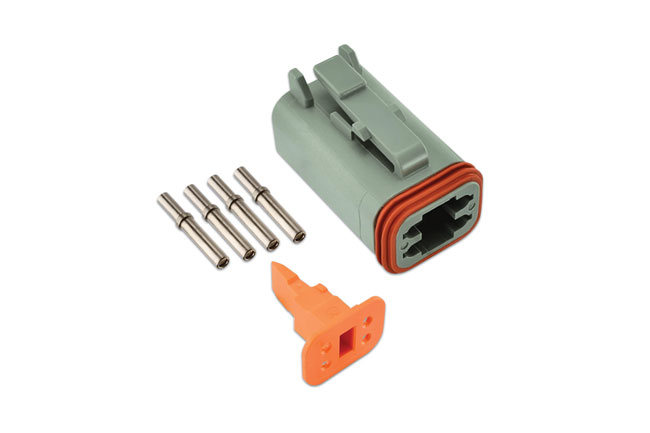

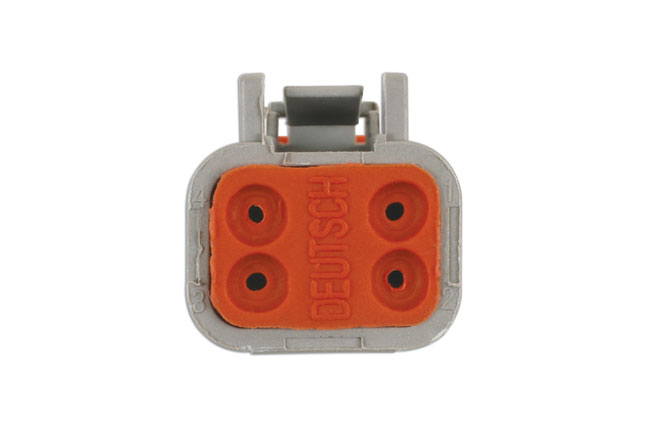

- Kit contains - 4 pin connector with red weatherproof seal,
- Plug wedgelock which locks in the terminals,
- Socket non insulated terminals to suit 0.5 - 1.5mm² cable (20-16AWG). Terminal replacement Part No. 37511.
- For a professional crimp please use our Laser Part No. 7533.
- Included in the Connect assorted Deutsch DT connector repair kit, Part No. 37415.
TSP:
£9.20 ex VAT £11.04 inc VAT
Heavy duty connectors which protect against the weather, dirt and high temperatures.
Connectors have a locking mechanism to prevent the wires and terminals vibrating free. Once cable has been crimped onto the terminal, push the terminal through the back of the connector until you hear a 'click'. Turn the connector around and insert the wedge lock plate until you hear the 'click' again which will give a secondary securing lock for the terminals.
The pin terminals are inserted into the connector receptacles and the socket pin terminals are used on the connector plugs.
For a professional crimp please use our Laser Part No 7533.
Industry standard size 16.
- Le kit contient le connecteur à 4 pôles avec les joints d'étanchéité rouge
- Système de verrouillage intégré du connecteur assurant une connection étanche parfaite
- Le connecteur mâle convient pour des cosses non isolées allant sur du câble en 0.5 - 1.5mm² câble (20-16AWG). Les cosses sont disponibles sous la ref 37511.
- Pour un sertissage professionnel, merci d'utiliser la ref Laser Tools 7533
- Fournis sous blister
TSP:
£9.20 ex VAT £11.04 inc VAT
