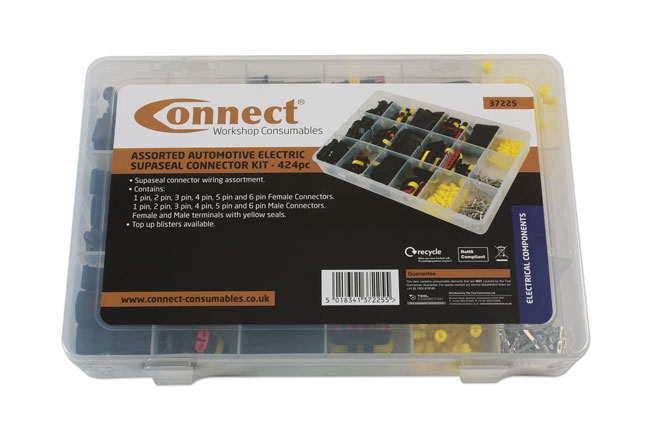

37225 Assorted Automotive Electric Supaseal Connector Kit 424pc

A Dealer No More Product - A range of parts for the garage, workshop & body-shop networks to help against the spiralling costs of main dealer prices RoHS Consumable Item Product Video available

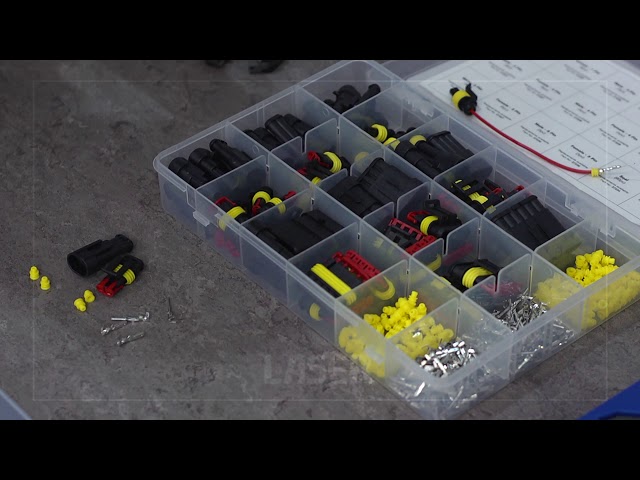

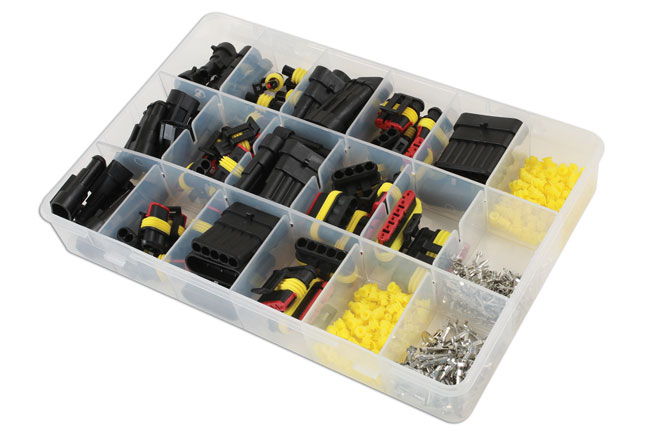

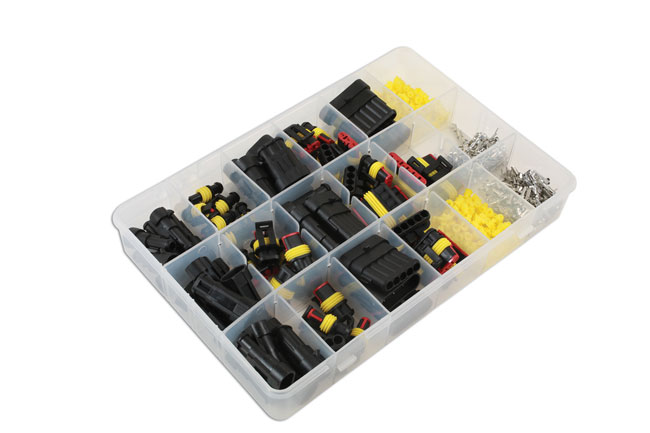

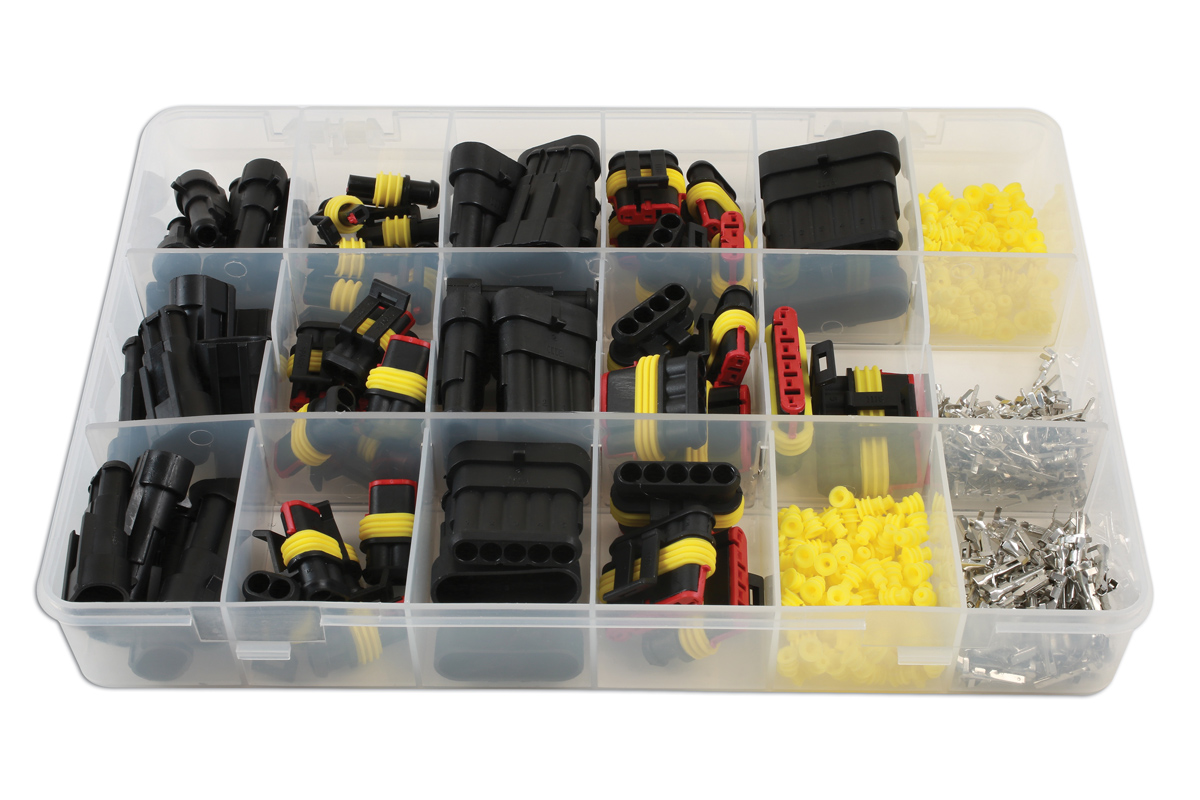

An assorted automotive electrical kit with 424 components. All components are available as top up packs. For a professional crimp please use our Laser 7002 ratchet crimping tool.Supaseal connectors are to be used on applications where a waterproof joint / seal are required for electrical cabling.To be used on 0.5mm² - 1.5mm² cable.We supply all the 'top up blisters' in kit form for the ease of the repair.Ideal assortment for any automotive electrical engineer working on sensor or harness repairs.

  • Supaseal connector wiring assortment for use on applications where a waterproof joint / seal are required for electrical cabling.
  • Female connectors: 1-pin, 2-pin, 3-pin, 4-pin, 5-pin & 6-pin.
  • Male connectors: 1-pin, 2-pin, 3-pin, 4-pin, 5-pin & 6-pin.
  • Kit also includes female & male terminals with yellow seals.
  • RoHS compliant. Top up blisters available, please see Connect Part Nos. 37226 (1-pin connector kit), 37227 (2-pin connector kit), 37228 (3-pin connector kit), 37229 (4-pin connector kit), 37230 (5-pin connector kit), 37231 (6-pin connector kit), 37232 (male non insulated terminals), 37233 (female non insulated terminals), 37234 (yellow terminal seal covers).
TSP: £85.03 ex VAT £102.04 inc VAT

  • Ce type de connecteurs permet d'assurer une connection électrique étanche
  • Contient des connecteurs mâles et femelles 1 pôle, 2 pôles, 3 pôles, 4 pôles, 5 pôles et 6 pôles.
  • Contient les cosses à sertir mâles et femelles ainsi que les joints d'étanchéité et obturateurs jaunes
  • Programme de recharge sous blister pour programme complet
  • Conforme ROHS.
TSP: £85.03 ex VAT £102.04 inc VAT

Een 424-delige assortimentsset met elektrische auto-onderdelen. Alle onderdelen zijn verkrijgbaar in een navulverpakking. Gebruik voor professioneel krimpen ons ratelkrimpgereedschap Laser 7002. Supaseal-connectoren moeten worden gebruikt als er waterdichte verbindingen/afdichtingen voor elektrische kabels nodig zijn. Geschikt voor kabels van 0,5 mm² tot 1,5 mm². We bieden alle 'aanvulblisters' in setvorm aan met het oog op reparatiegemak. Ideaal assortiment voor elke auto/elektromonteur die sensoren en kabelbomen repareert.

  • Supaseal connector- en bedradingsset voor toepassingen waarin een waterdichte verbinding/afdichting voor elektrische kabels benodigd is.
  • Vrouwelijke connectoren: 1-pins, 2-pins, 3-pins, 4-pins, 5-pins en 6-pins.
  • Mannelijke connectoren: 1-pins, 2-pins, 3-pins, 4-pins, 5-pins en 6-pins.
  • Set bevat ook vrouwelijke en mannelijke klemmen met gele afdichtingen.
  • RoHS-conform. Navulblisters leverbaar. Zie Connect art. nrs. 37226 (1-pins connectorset), 37227 (2-pins connectorset), 37228 (3-pins connectorset), 37229 (4-pins connectorset), 37230 (5-pins connectorset), 37231 (6-pins connectorset), 37232 (mannelijke niet-geïsoleerde klemmen), 37233 (vrouwelijke niet-geïsoleerde klemmen), 37234 (gele klemafdichtkappen).
TSP: £85.03 ex VAT £102.04 inc VAT
A Dealer No More Product - A range of parts for the garage, workshop & body-shop networks to help against the spiralling costs of main dealer prices RoHS Consumable Item Product Video available
 Buy Locally

Press Release
Professional, moisture-resistant wiring connections with this ratchet crimping tool and Supaseal connector kit

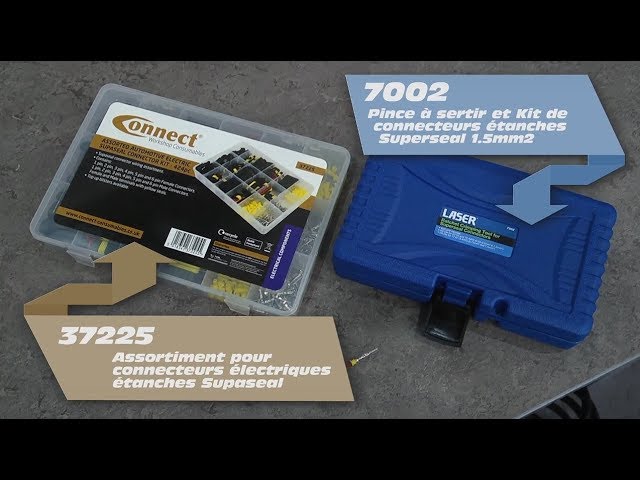

When repairing damaged wiring or when adding electrical accessories, nothing looks worse that poorly crimped electrical connectors and bits of coloured electrical insulation tape littering the engine bay. And that's not even mentioning the safety aspects. But using the proper tools and professional connectors will ensure a neat, robust and safe wiring job that will look good on both classic and modern cars. This ratchet crimping tool (part number 7002) from Laser Tools and the Assorted Automotive Electric Supaseal Connector kit from Connect Consumables (part number 37225) will give you the results you require.

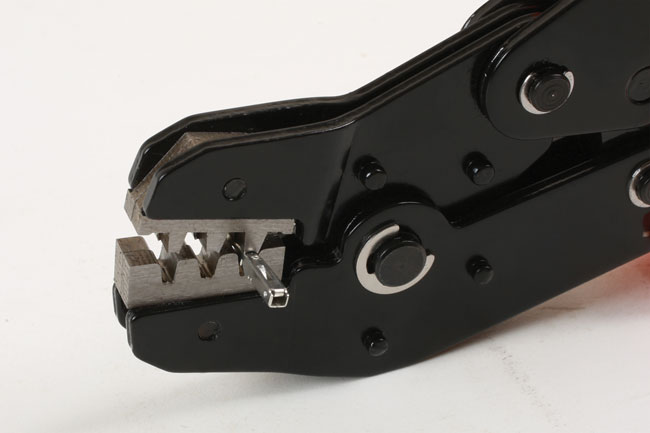

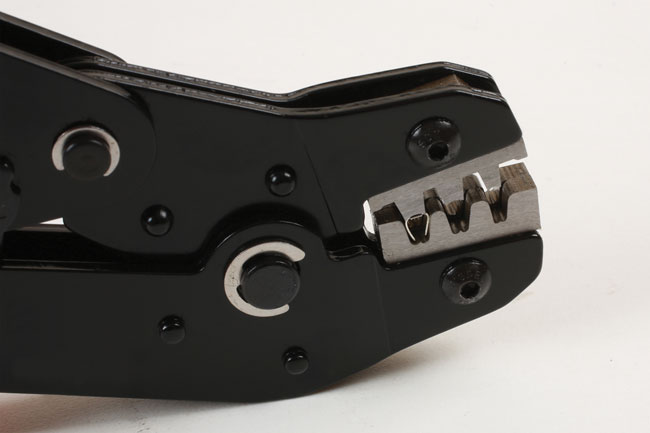

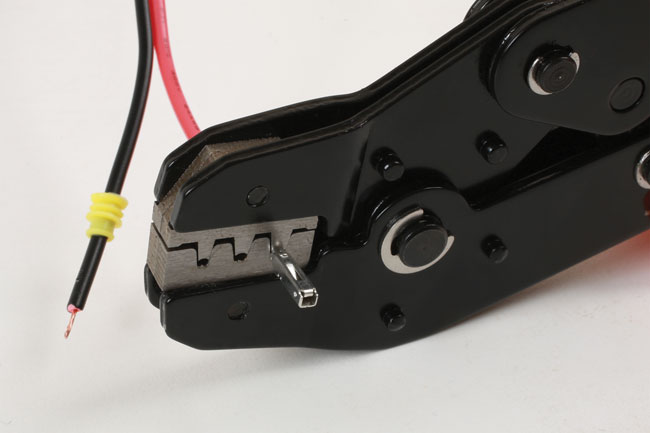

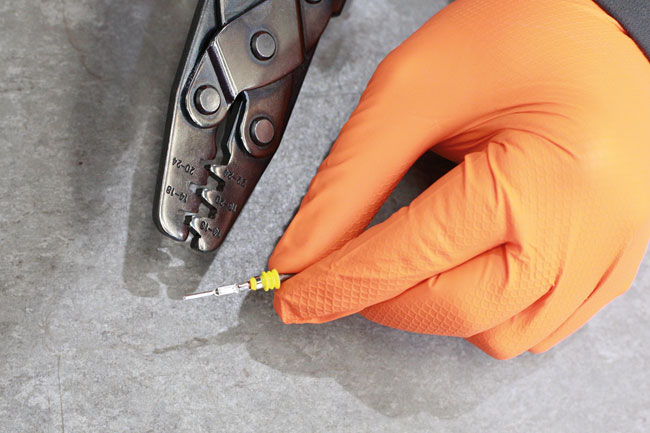

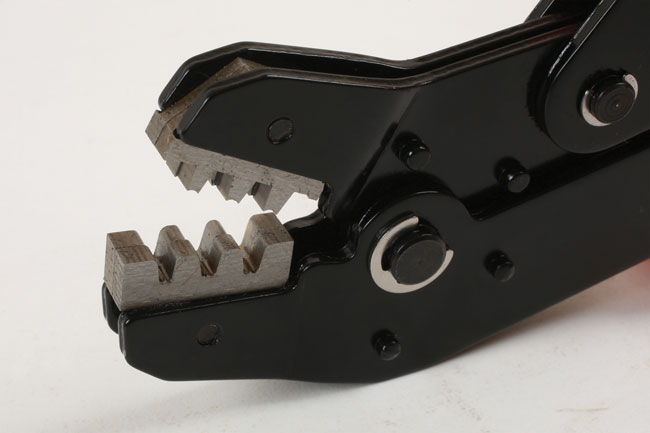

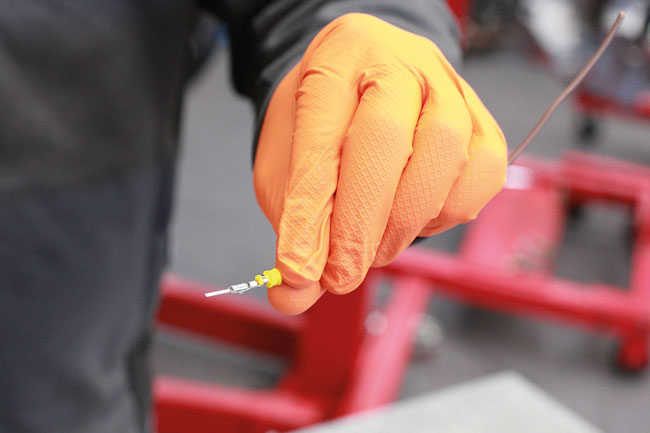

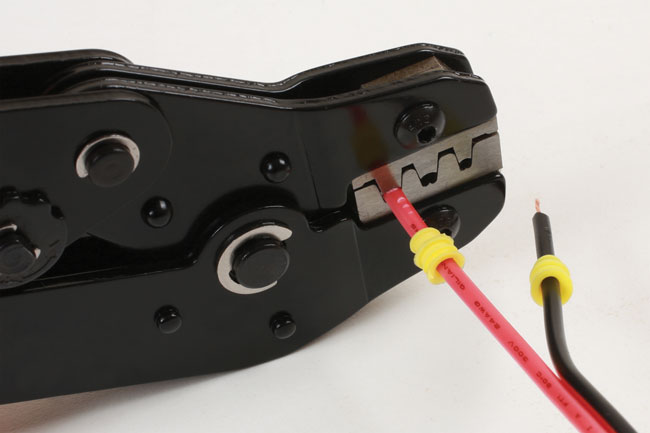

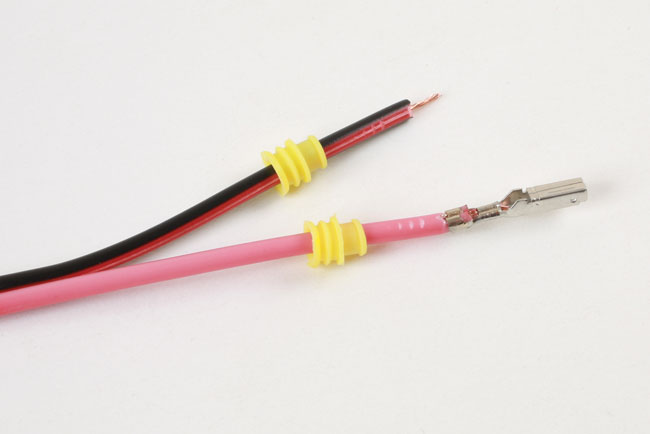

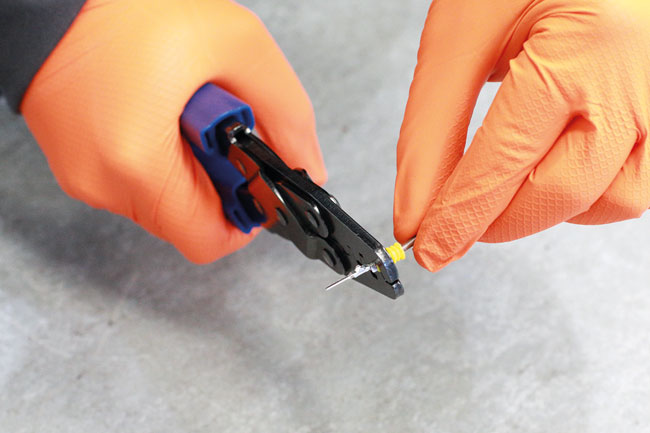

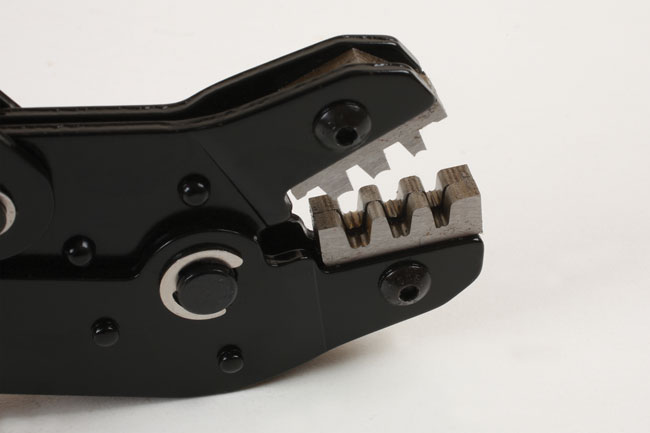

The ratchet crimping tool is designed specifically for the Supaseal type connectors; it is supplied with two die-heads, an H2 size for 22-20 and 16 AWG (0.35-0.5mm² & 1.5mm²) wiring and an H3 sized head for 17 to 18 AWG (0.75mm² and 1.0mm²). Choose the correct die-head for the job in hand; then one action of the crimping tool firmly crimps both the terminal to the exposed wire, and secures the yellow seal.

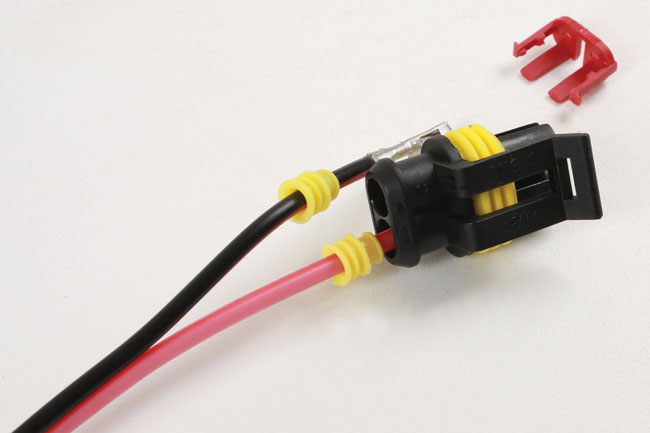

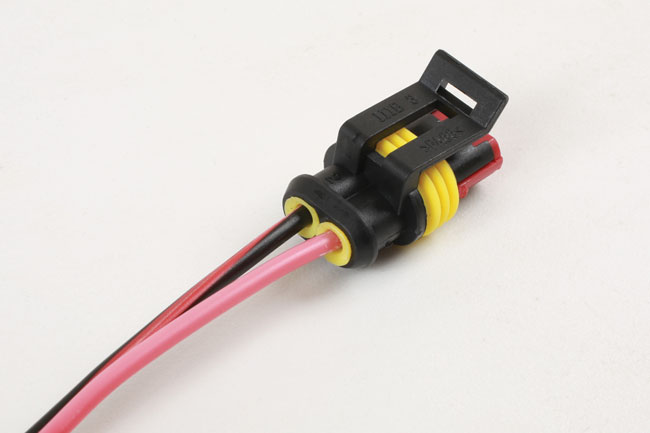

Once the terminals are crimped they are inserted into the chosen connector and locked in place with the supplied locking tabs. In the Connect Consumables connector kit a selection of 1 pin, 2 pin, 3 pin, 4 pin, 5 pin and 6 pin male and female connectors are supplied, together with the yellow wire seals and the terminal locking tabs. When the male and female connectors are pressed together the result is a professional, moisture-resistant connection that conforms to the RoHS specification.

Top up blister packs of the connectors and terminals are available so that you always have the correct size of connector handy.

These professional tools are available now from your Laser Tools and Connect Consumables stockist.
